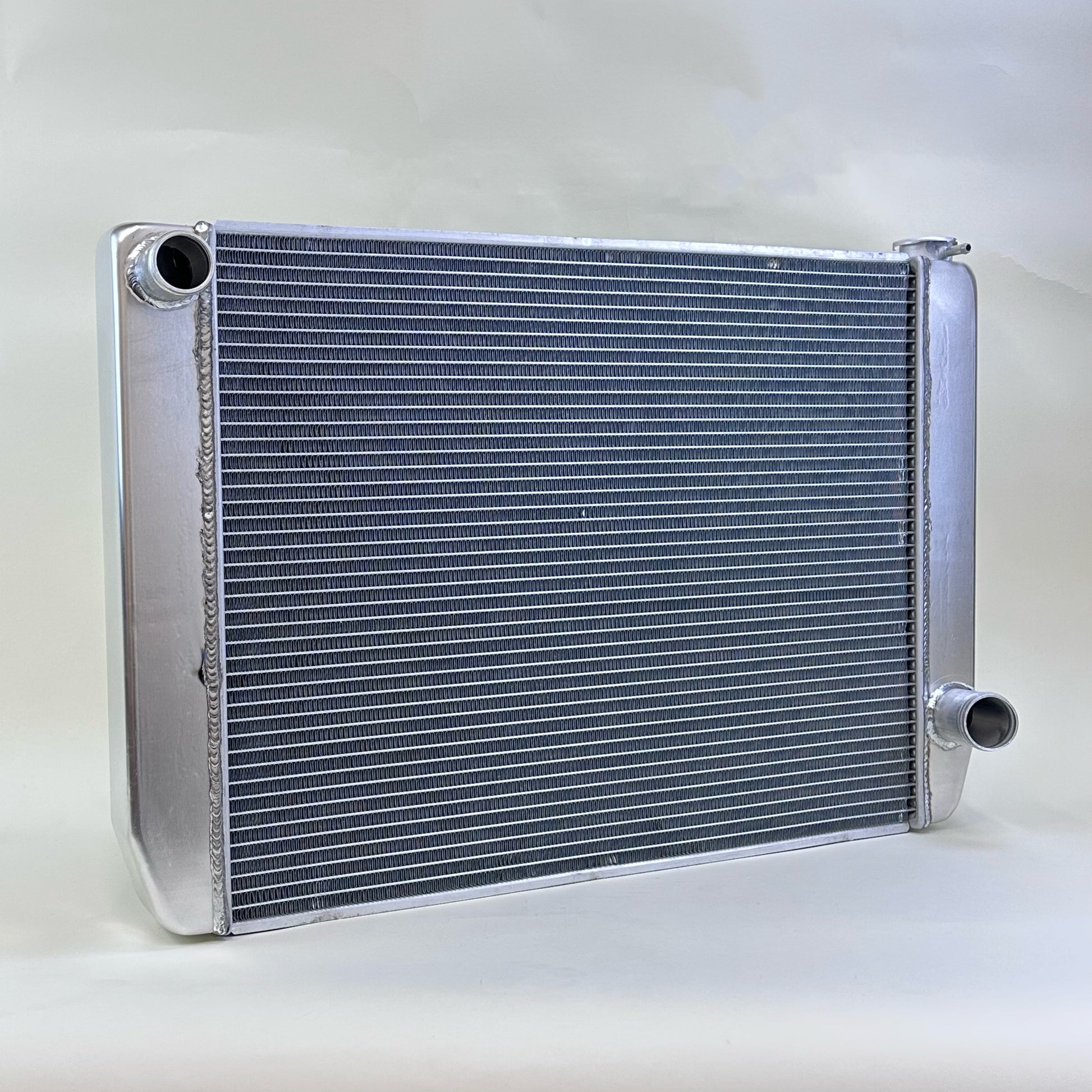

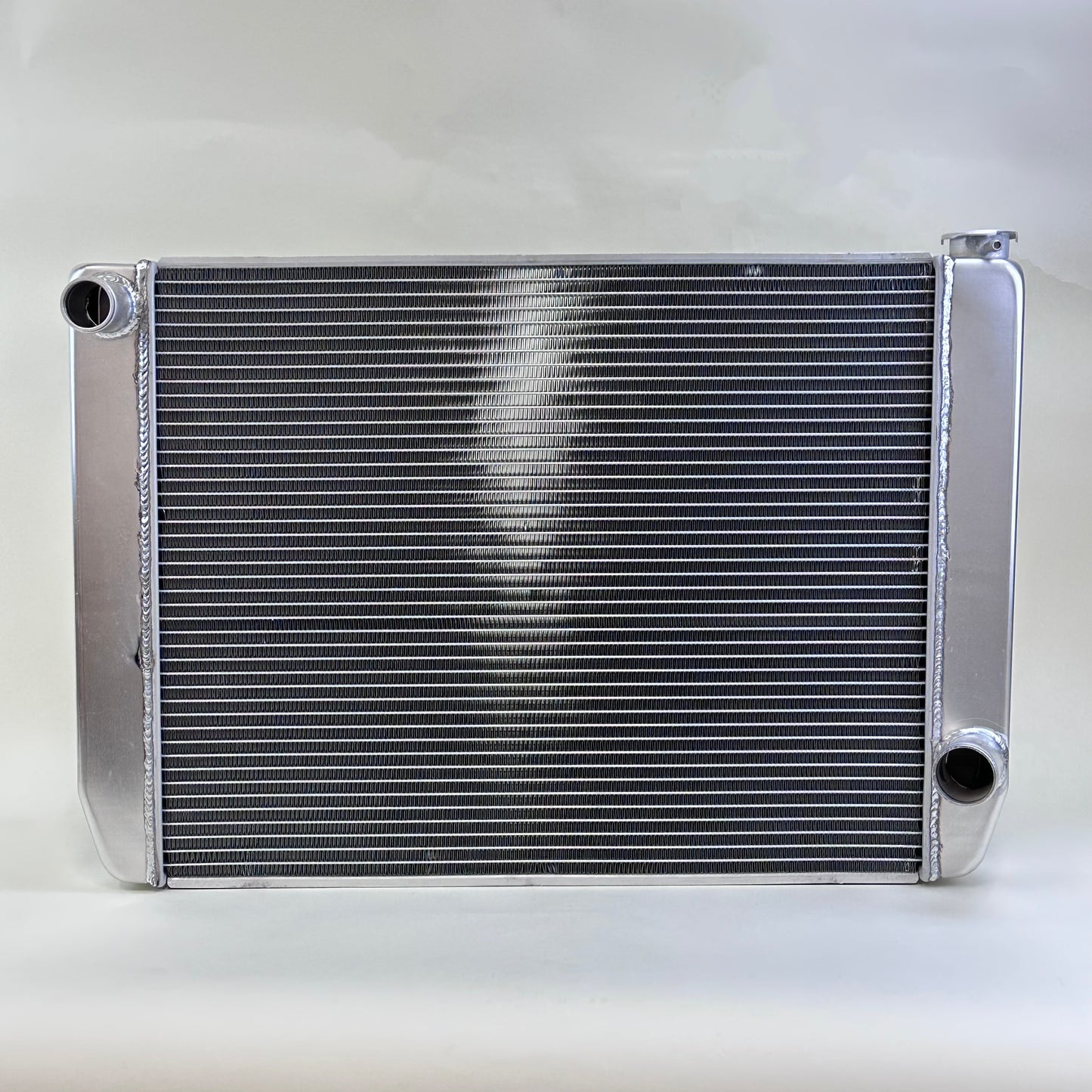

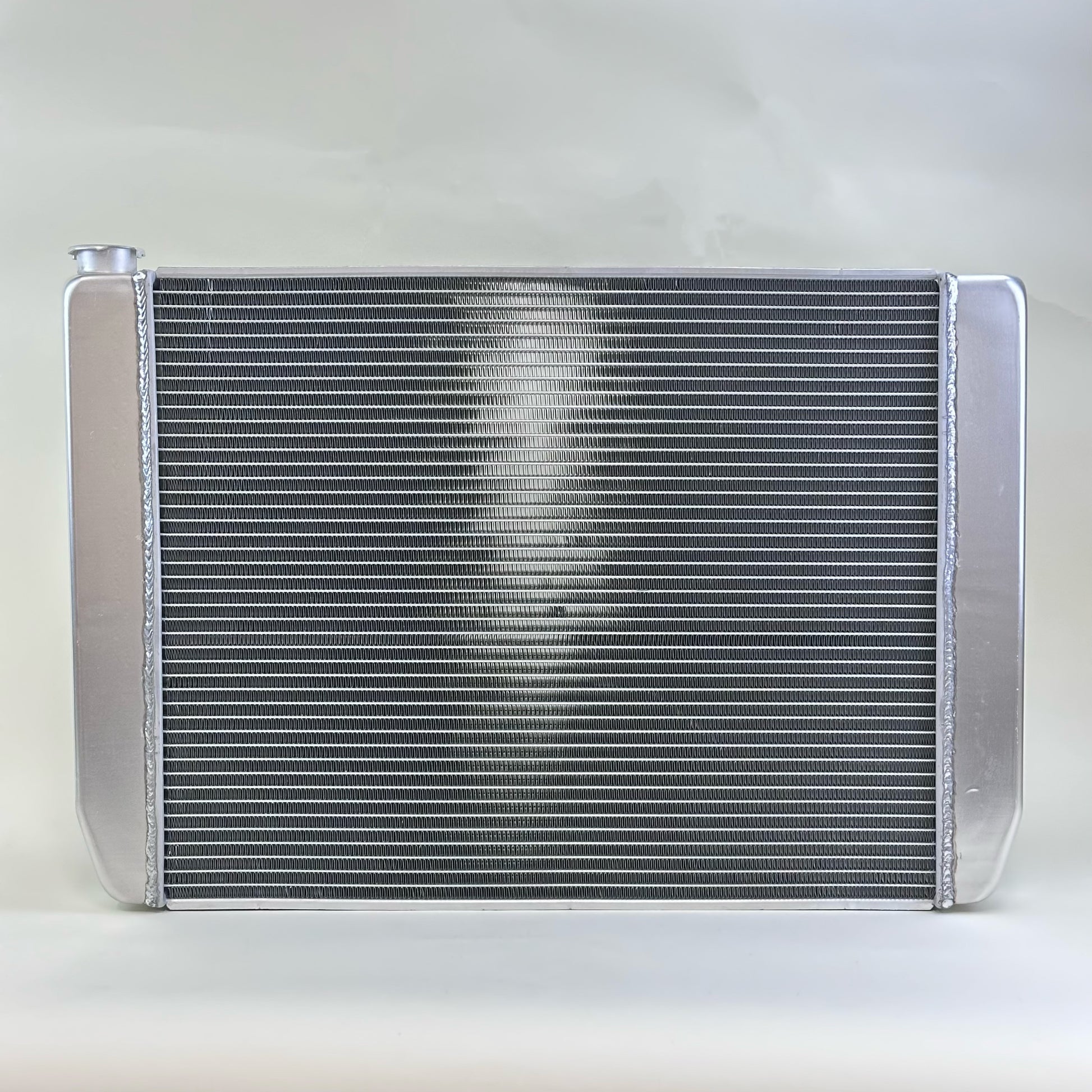

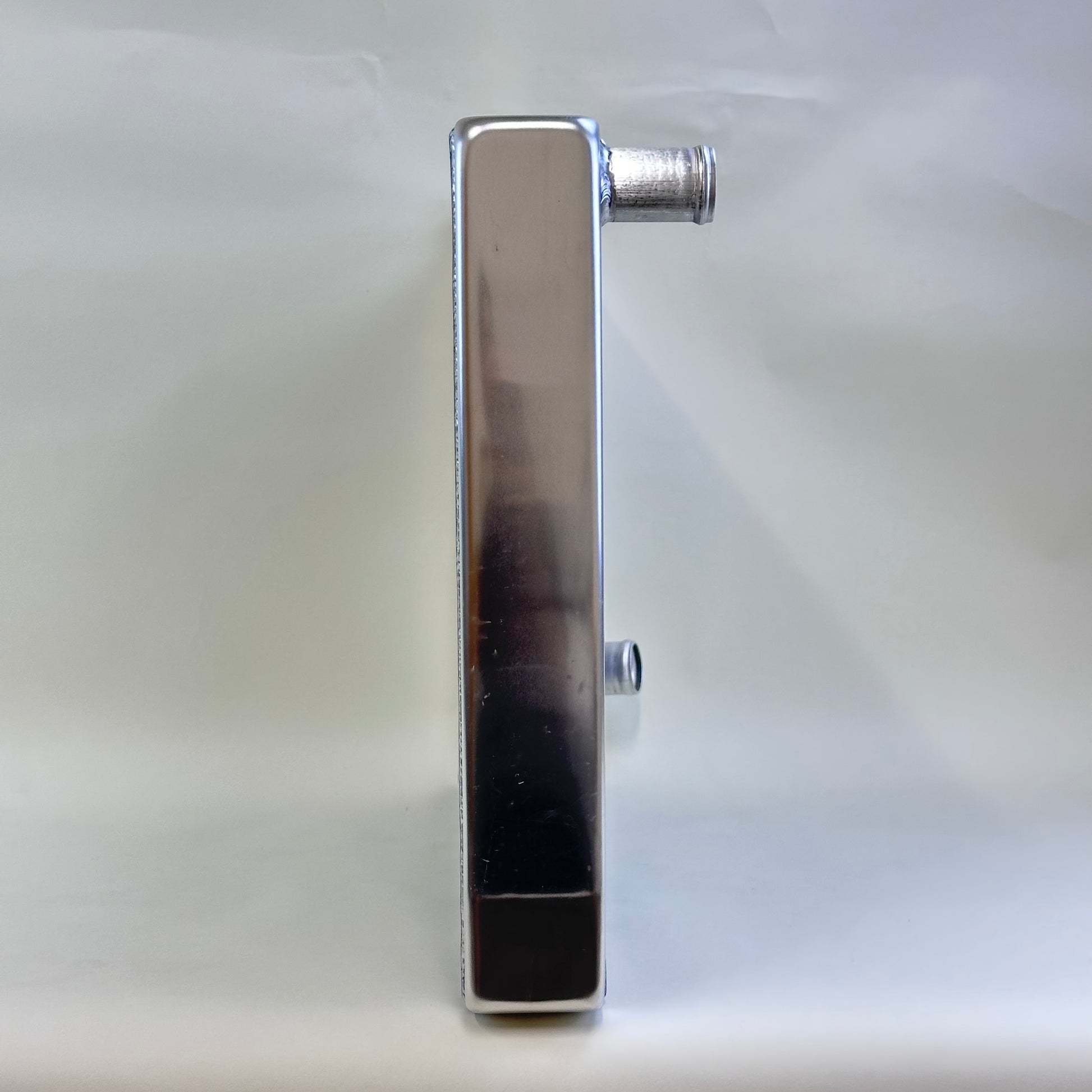

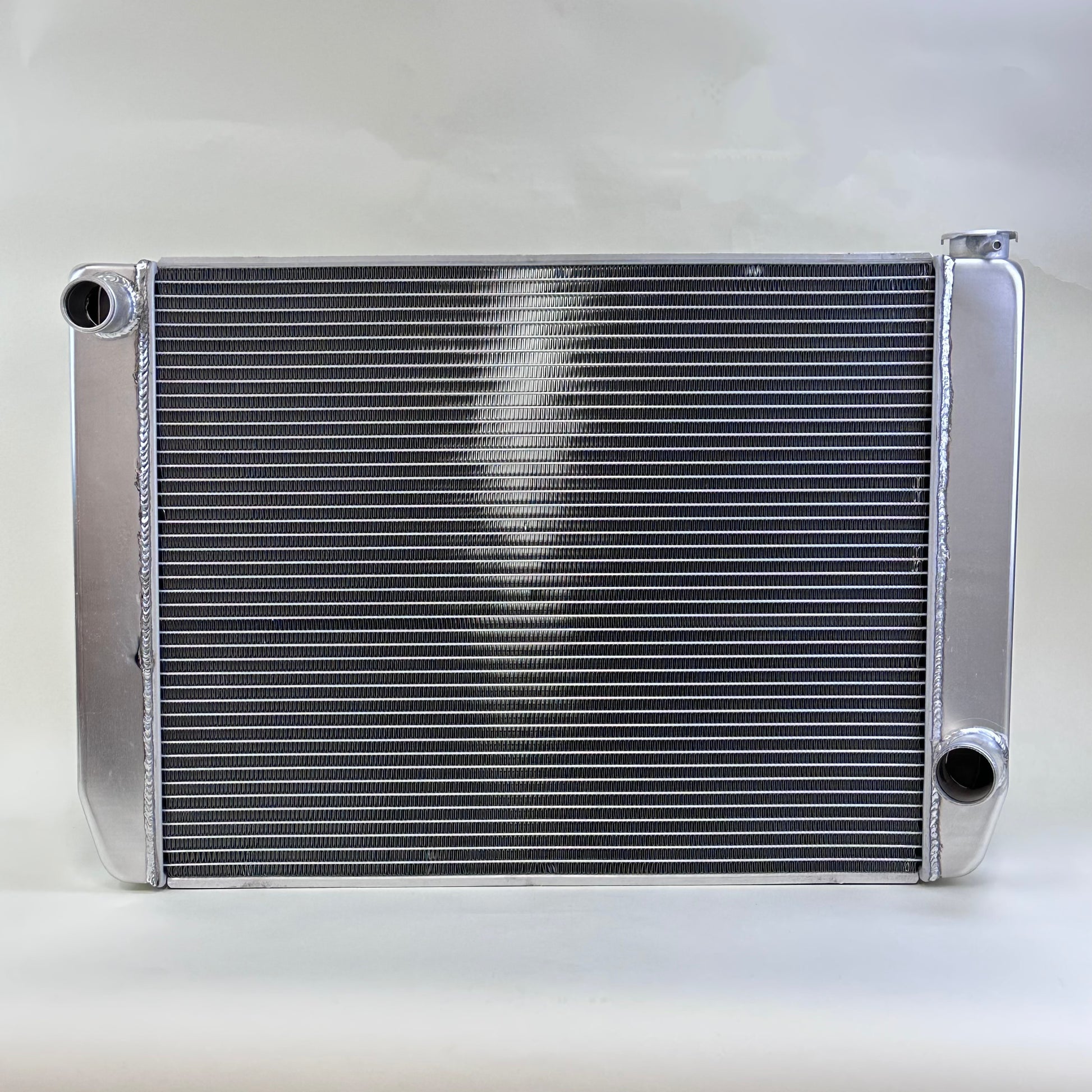

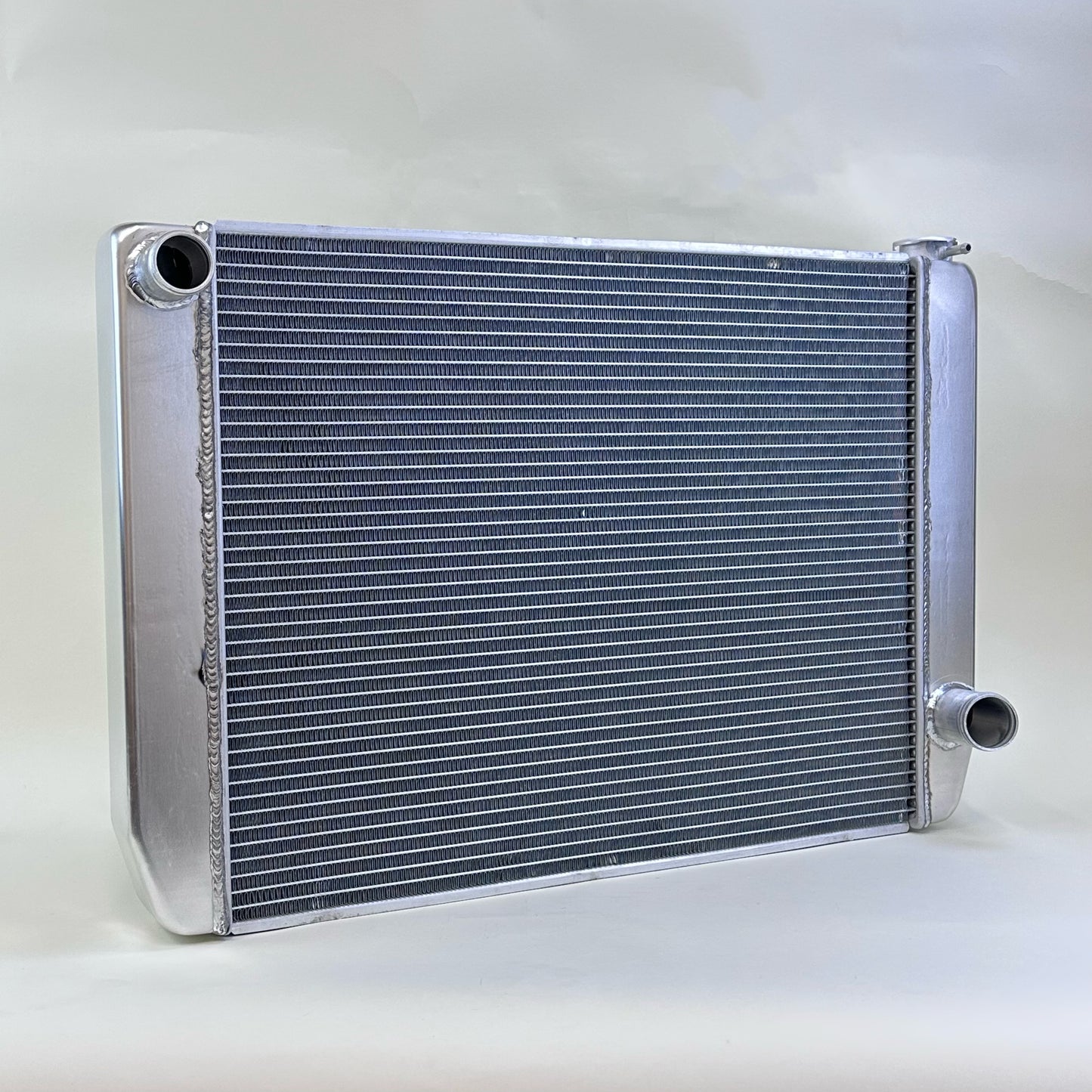

G168 New 28" x 19" x3'' For Chevy GM Racing Radiator Universal 2 Row Single Pass

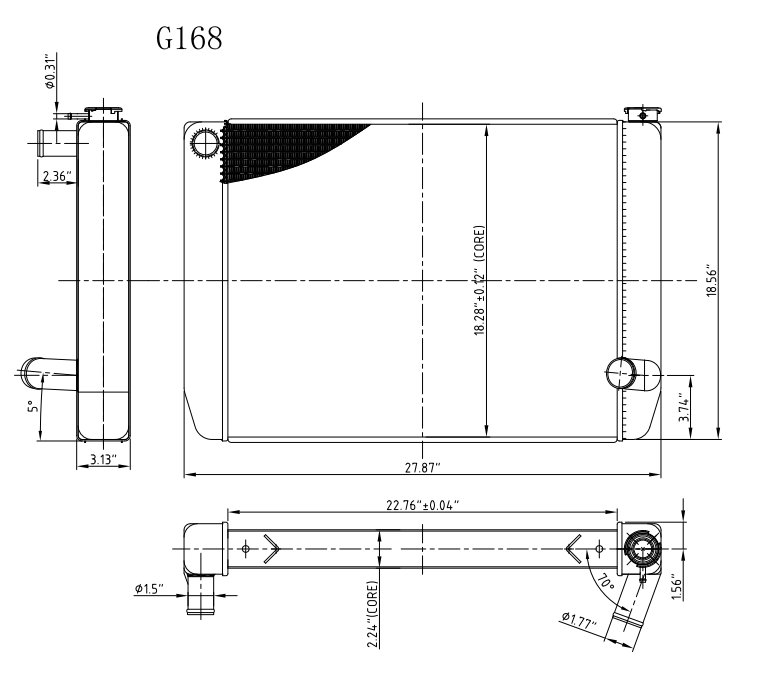

Radiator Dimensions and Specifications

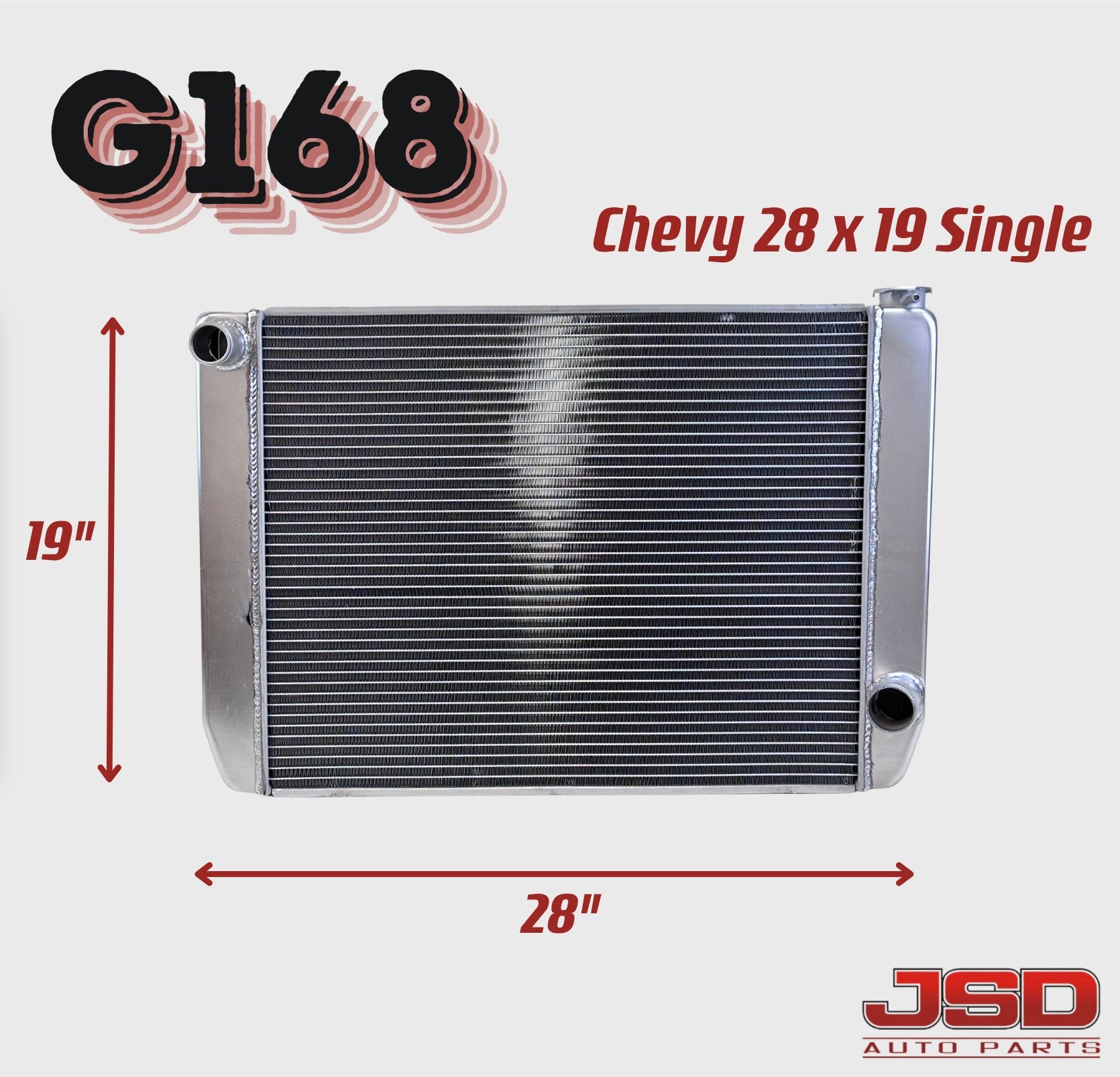

• Dimensions: 28" x 19" x 3"
• Radiator Core: 2 Row Single Pass, ensuring efficient cooling performance
• Overall Size: 28" (Width) x 19" (Height) x 3" (Thickness)
• Core Size: 22 3/4" (Width) x 18 1/4" (Height) x 2 1/4" (Thickness)

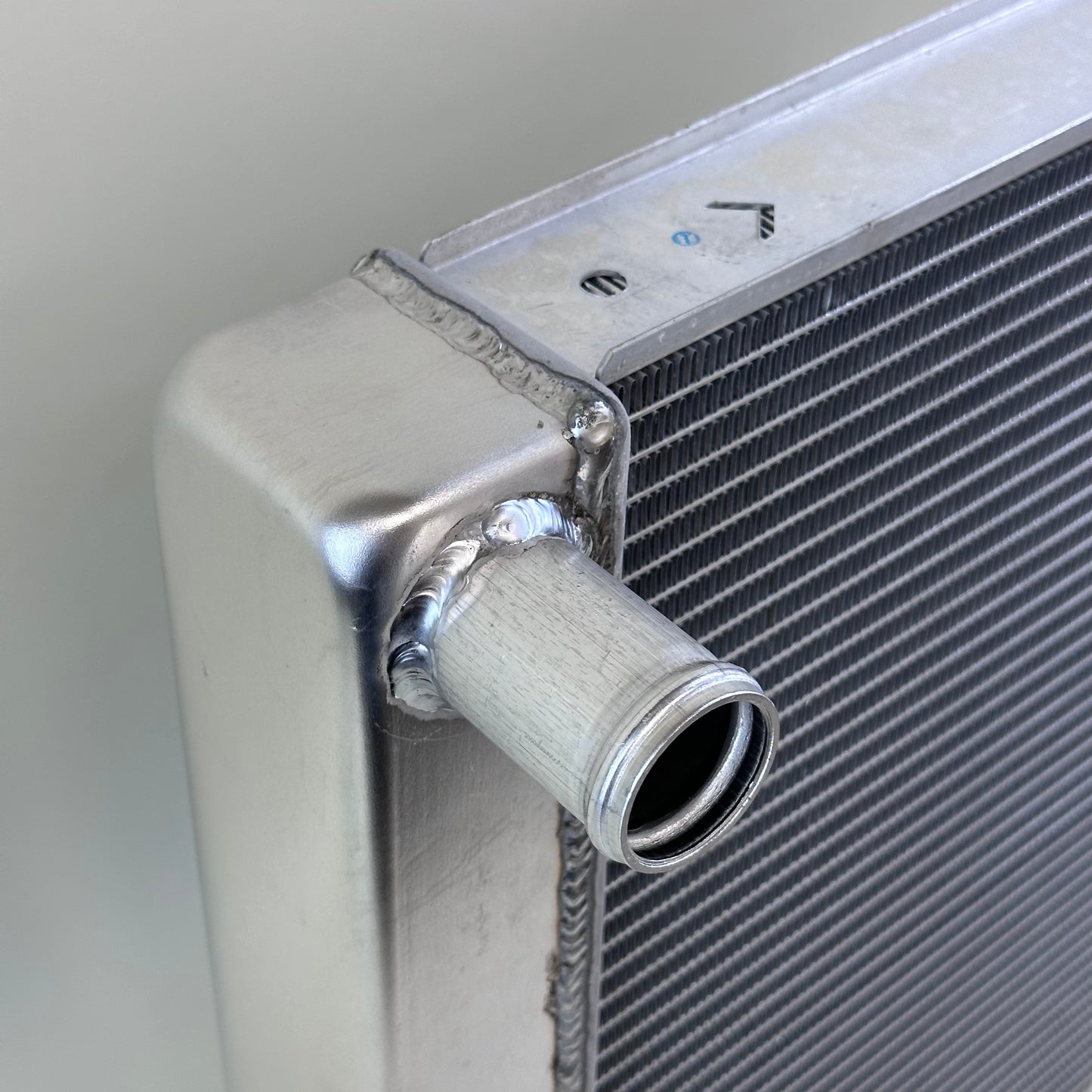

• Inlet Location: Upper Left, designed for optimal coolant flow
• Inlet Size: 1 1/2", suitable for standard hose connections

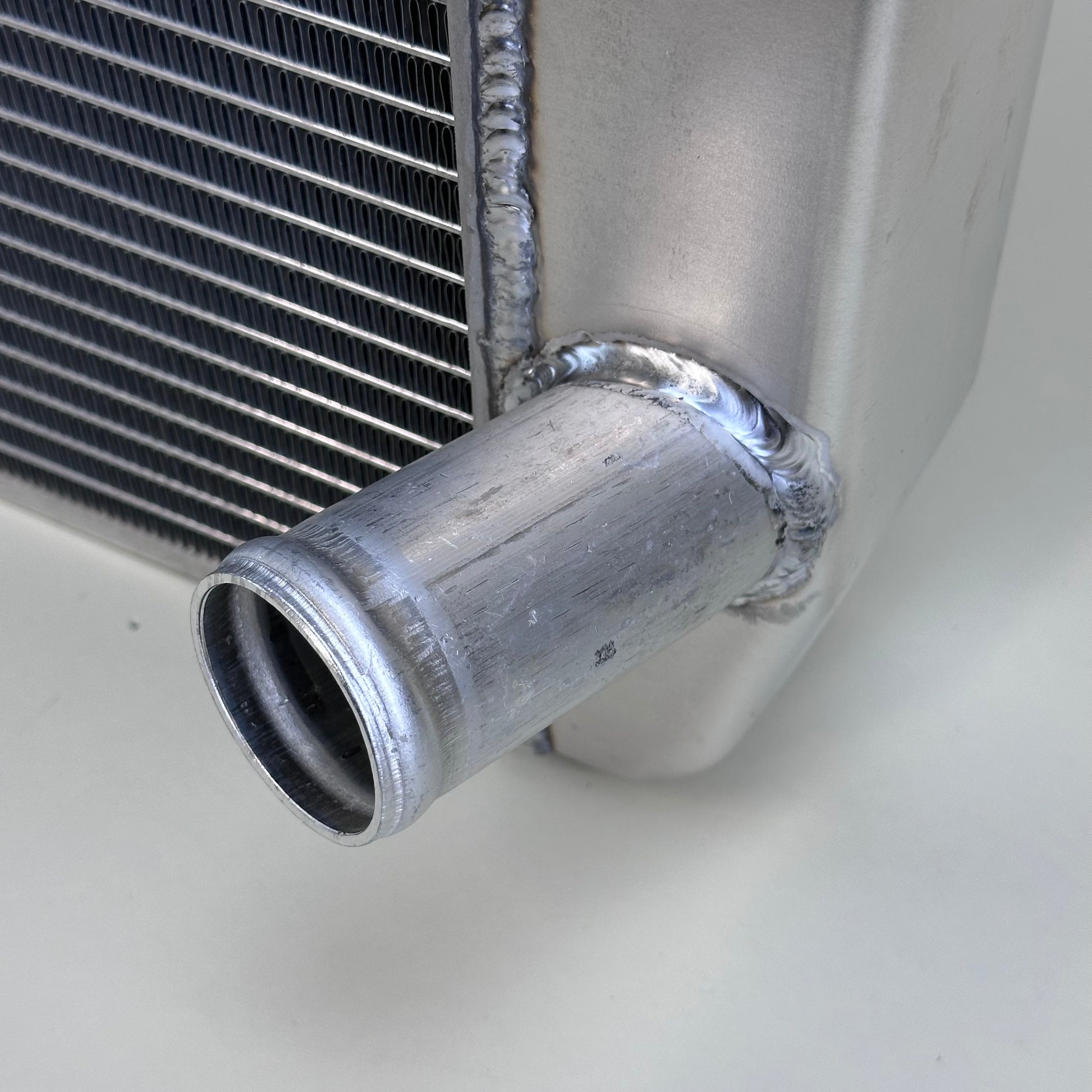

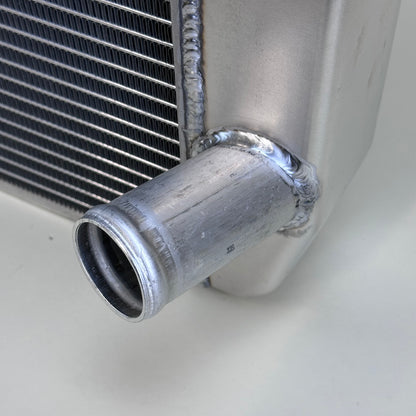

• Outlet Location: Lower Right, strategically placed for effective coolant exit
• Outlet Size: 1 3/4", ensuring proper fitment with standard hose sizes

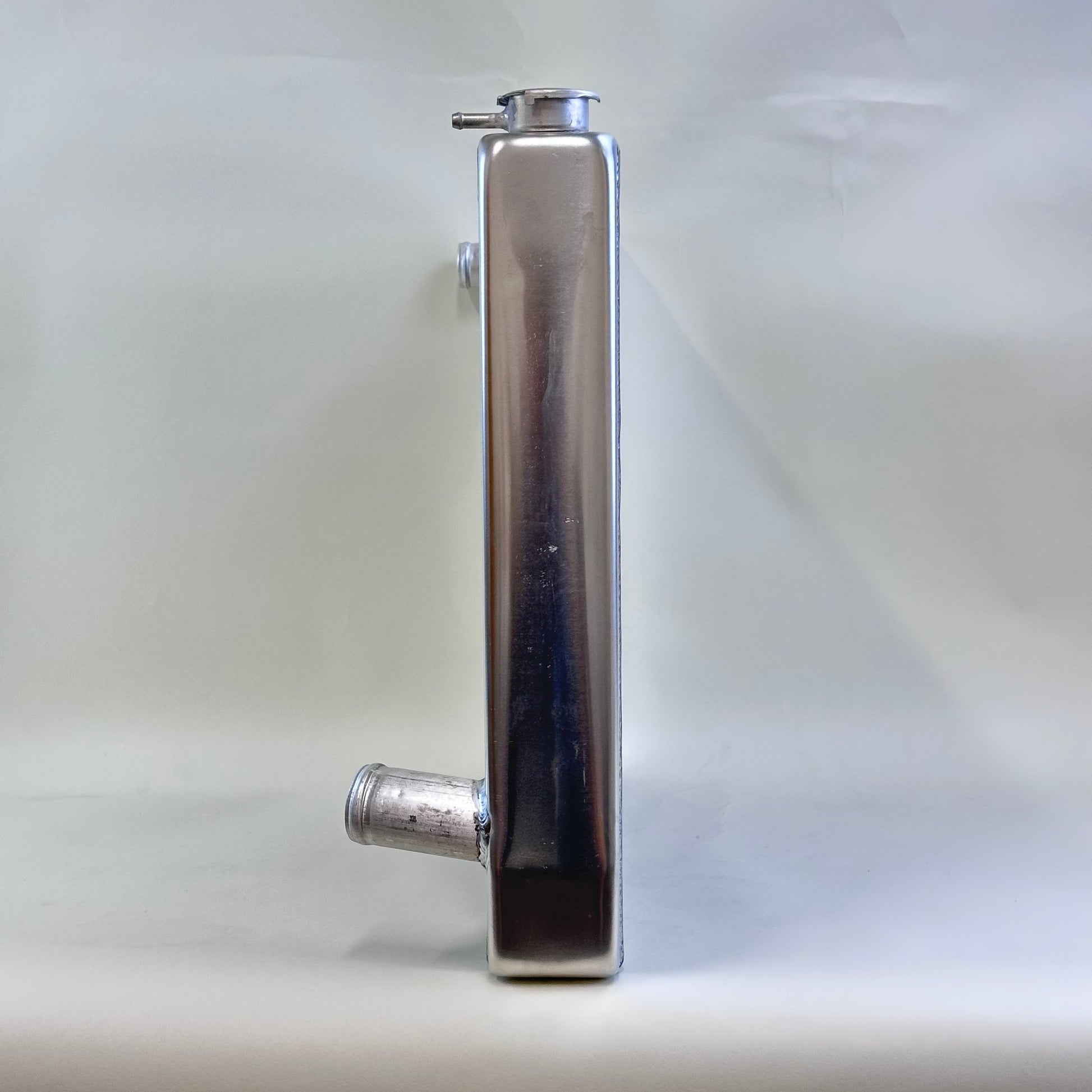

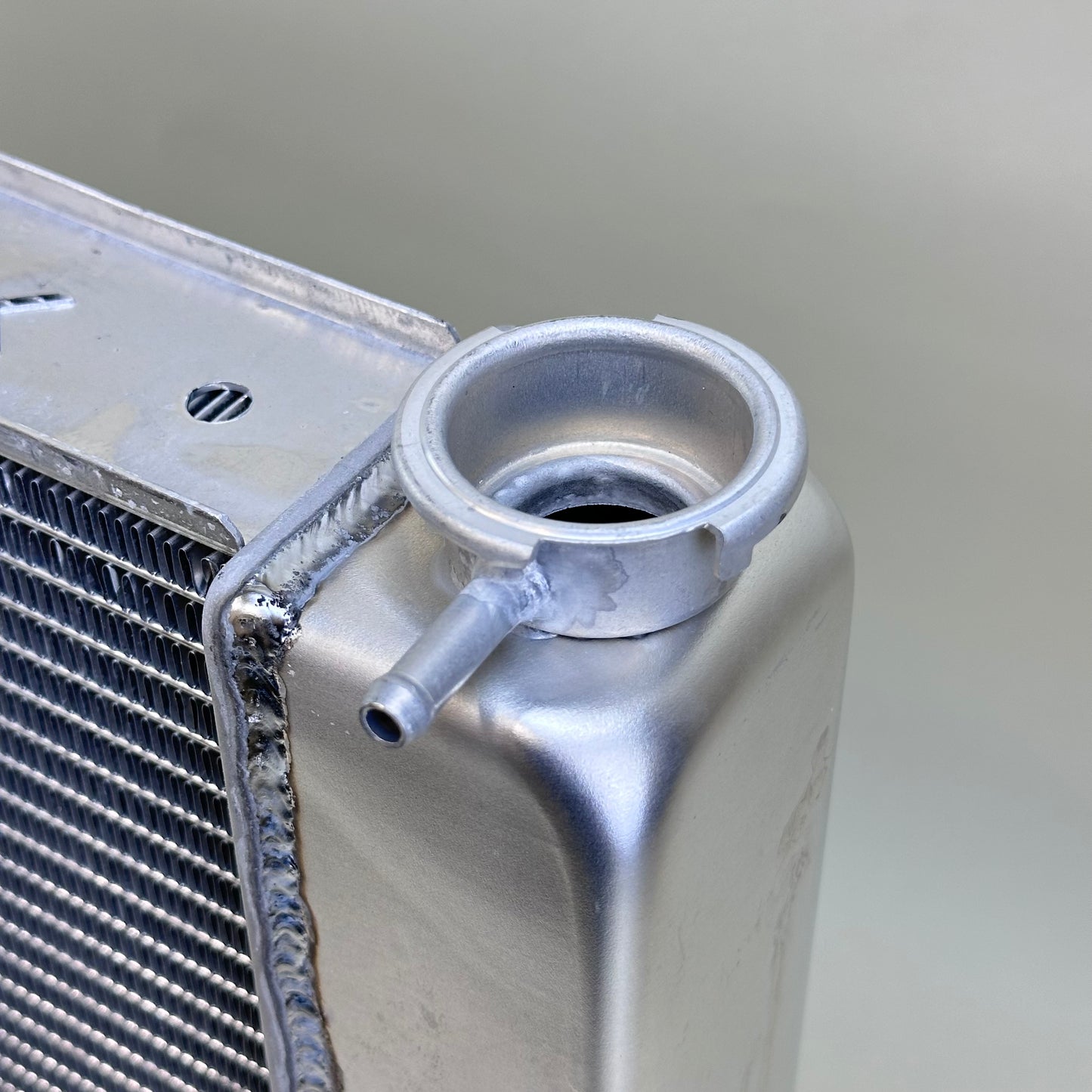

• Filler Neck Height: 1", providing easy access for coolant top-up
• Tube Size: 1", featuring robust tubes for maximum heat dissipation

This radiator is crafted for durability and performance, making it an ideal choice for those seeking reliable cooling for their vehicle. The 2-row single-pass design ensures efficient heat transfer, while the well-sized core and overall dimensions offer compatibility with a wide range of vehicles. The strategically placed inlet and outlet locations, along with standard sizing, make installation straightforward and hassle-free.
